SmartUSBHub 产品系列SmartUSBHub product family

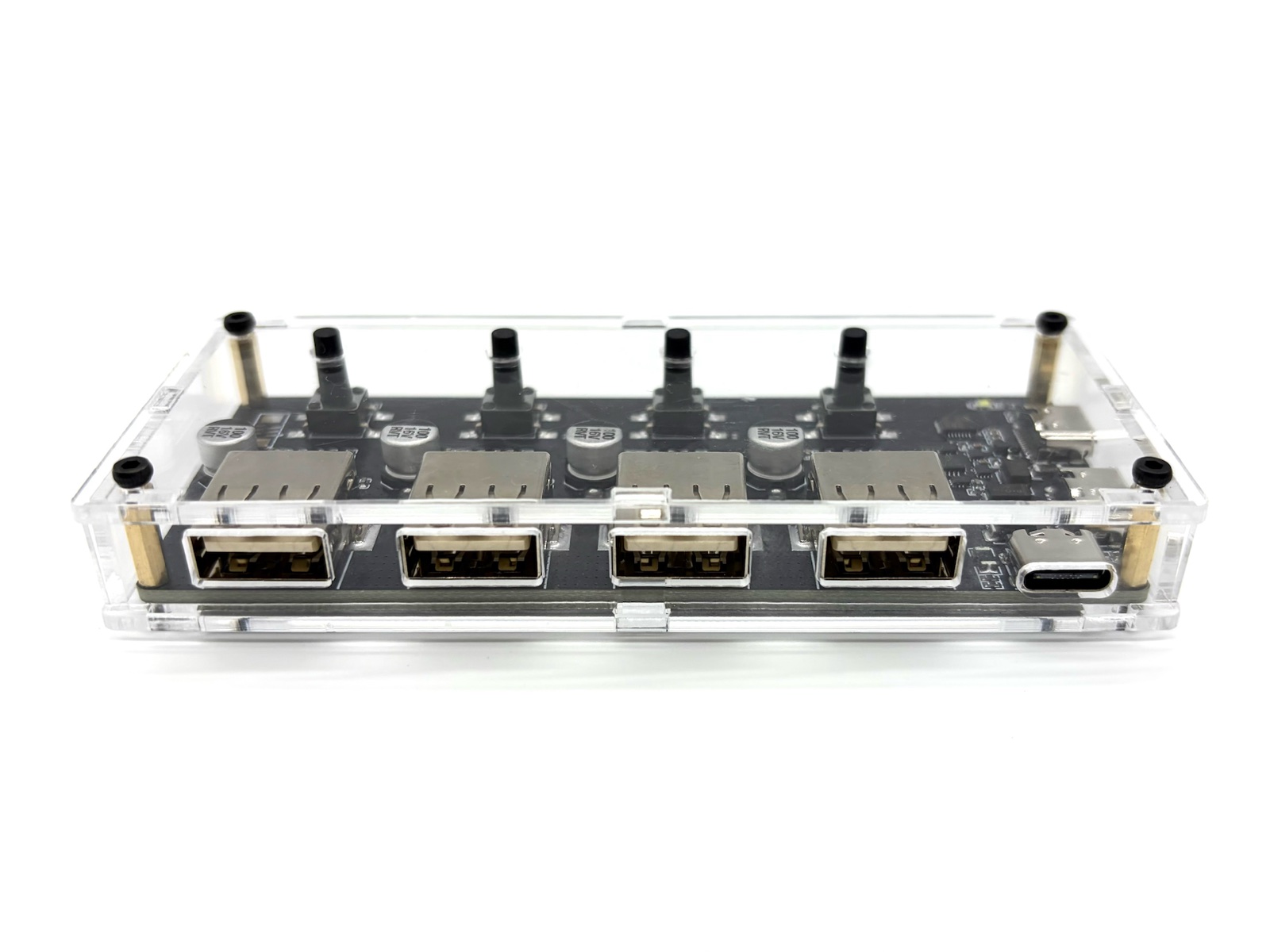

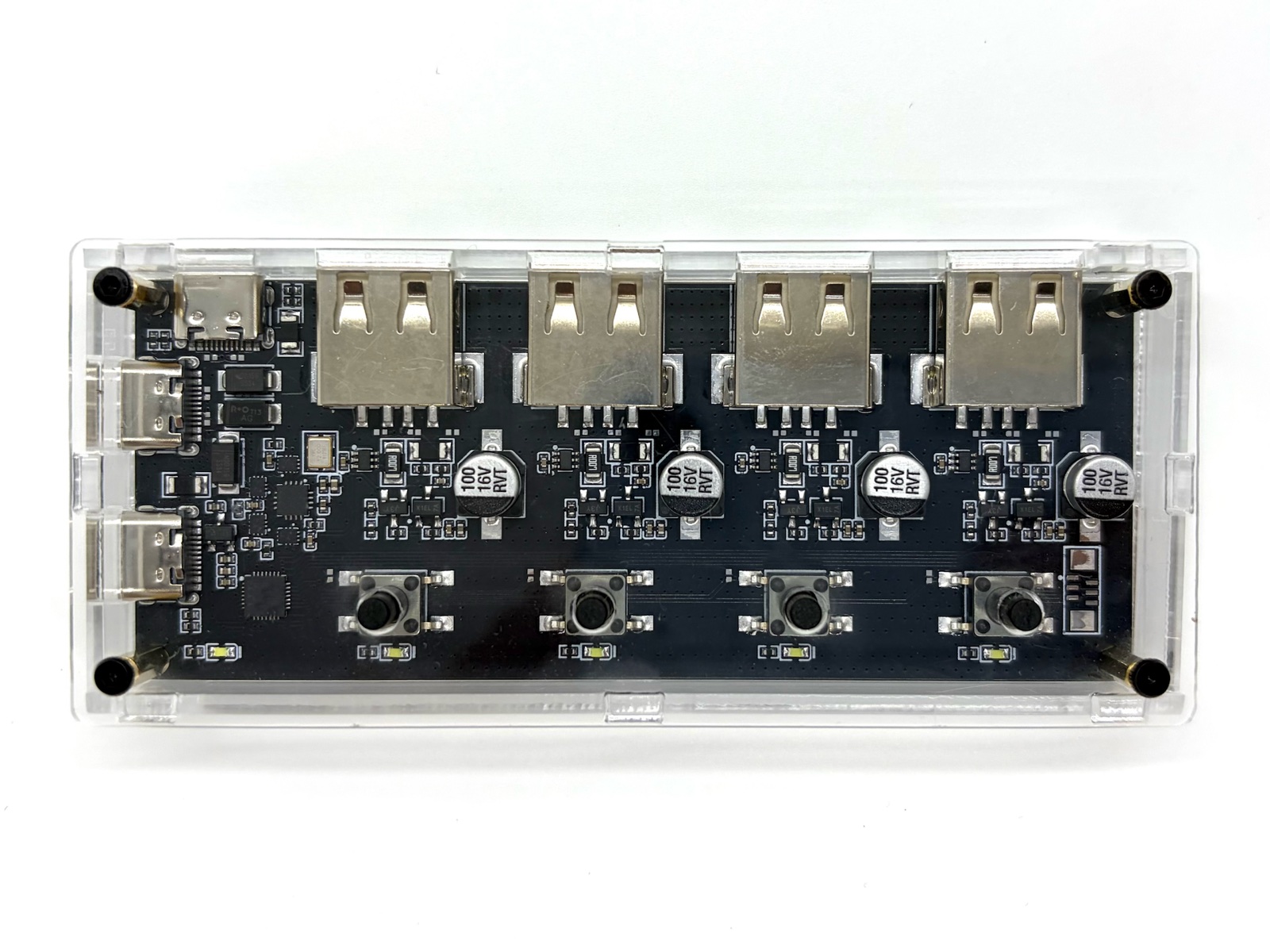

SmartUSBHub Pro 4CH USB2.0SmartUSBHub Pro 4CH USB2.0

4 路软件可编程 USB 2.0 High-Speed 集线器，紧凑外形适合空间受限场景。每路标配电压/电流测量与自恢复保险丝，支持普通/互锁模式与断电状态恢复。A 4-port software-programmable USB 2.0 High-Speed hub in a compact form factor. Per-channel voltage/current measurement is standard, with resettable-fuse protection, normal/interlock modes and power-loss state recovery.

USB 标准USB standard	USB 2.0 High-Speed (480 Mbps)，兼容 Full-Speed、Low-Speed 与 USB 1.1; compatible with Full-Speed, Low-Speed and USB 1.1
通道数Channels	4
单路输出路径能力Per-port output path	最高 4 A；不代表协议保证的充电电流up to 4 A; not a guaranteed charging current
CDP 充电CDP charging	USB BC 1.2 CDP，单口最高 1.5 A；不支持 QC、USB PD 等快充协议USB BC 1.2 CDP, up to 1.5 A per port; QC, USB PD and other fast-charging protocols are not supported
电压/电流测量V/I measurement	每路标配。电压：0–5.5 V，1.48 mV 分辨率，精度 ±（读数的 0.91% + 36 mV）；电流：0–4.0 A，1.15 mA 分辨率，精度 ±（读数的 2.5% + 50 mA）standard on every channel. Voltage: 0–5.5 V, 1.48 mV resolution, ±(0.91% of reading + 36 mV). Current: 0–4.0 A, 1.15 mA resolution, ±(2.5% of reading + 50 mA)
测量数据流Measurement stream	最高 100 Hzup to 100 Hz
过流保护Overcurrent	每路自恢复保险丝resettable fuse on every port
数据线控制Data-line control	USB 2.0 D+ / D−，独立于电源USB 2.0 D+ / D−, independent of power
工作模式Operating modes	普通 / 互锁；上电默认状态、断电恢复、设备地址normal / interlock; power-on defaults, power-loss recovery, device address
供电（USB-C）Power inputs	DATA、CMD 与 AUX POWER 三路 5 V 输入合并供电；总输入电流须低于 10 A，实际输出取决于电源、线材与散热。AUX POWER 外接电源必须具有限流和短路保护combined 5 V input from DATA, CMD and AUX POWER; total input current must remain below 10 A, and available output depends on the supplies, cables and cooling. The external AUX POWER supply must provide current limiting and short-circuit protection
输入电压限制Input-voltage limit	仅限稳压 5 V DC（推荐 4.75–5.25 V）；5.5 V 为绝对最大值，禁止输入 9 V、12 V、15 V 或 20 Vregulated 5 V DC only (4.75–5.25 V recommended); 5.5 V is the absolute maximum—never apply 9 V, 12 V, 15 V or 20 V
主机接口（USB-C）Host interfaces	USB-C DATA 上行数据口 + USB-C CMD 指令口（USB CDC）USB-C DATA upstream port + USB-C CMD control port (USB CDC)
固件升级Firmware update	支持Supported
USB CDC 主机支持USB CDC host support	当前 Windows、macOS、Linux 通常使用系统内置驱动；Windows 7 需使用随软件提供的驱动current Windows, macOS and Linux systems normally use built-in drivers; Windows 7 uses the bundled driver

两个版本功能相同，仅是否随附电源适配器不同。Both variants provide the same control and measurement features; only the bundled power adapter differs.

采购咨询Contact Sales

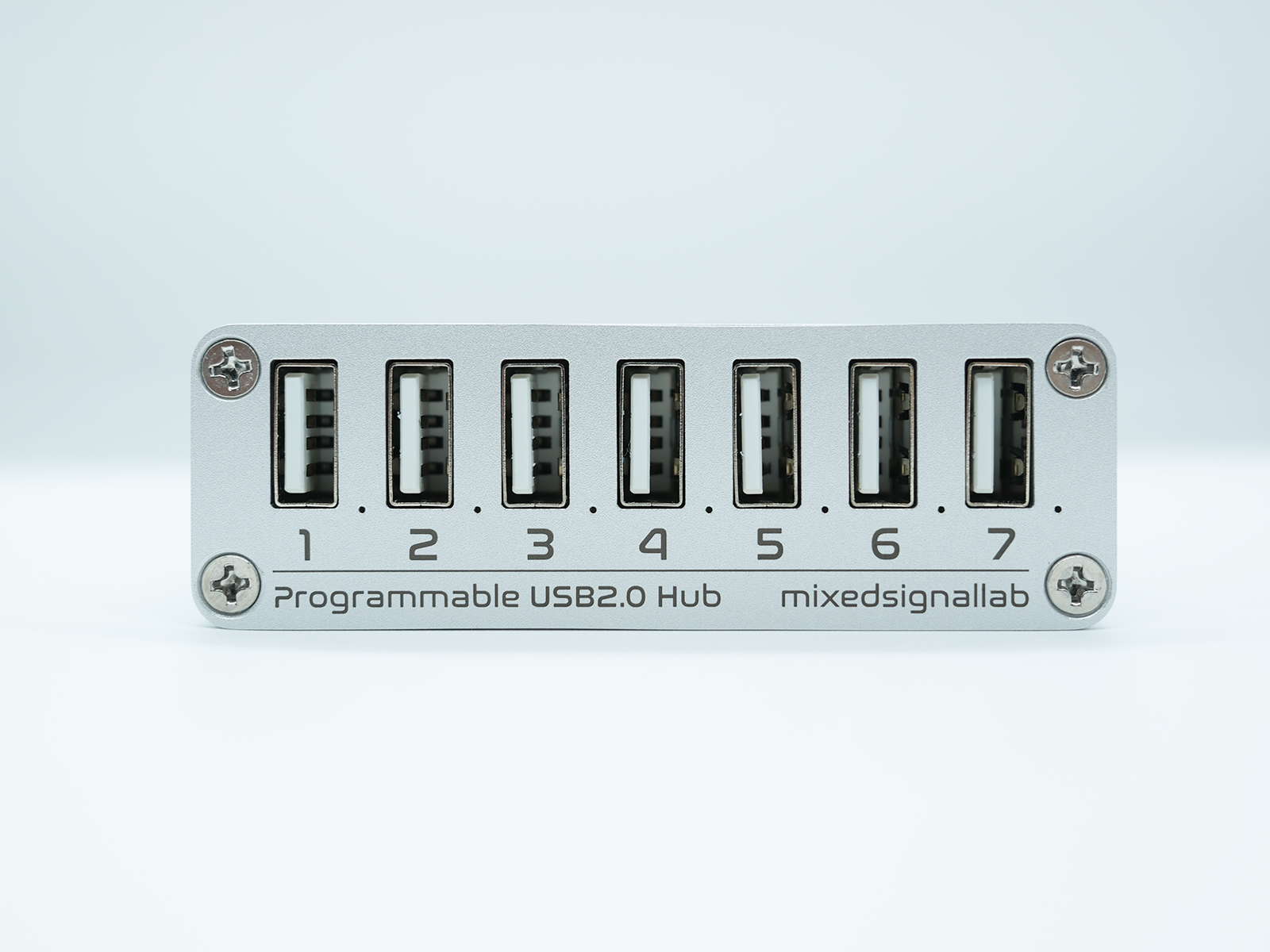

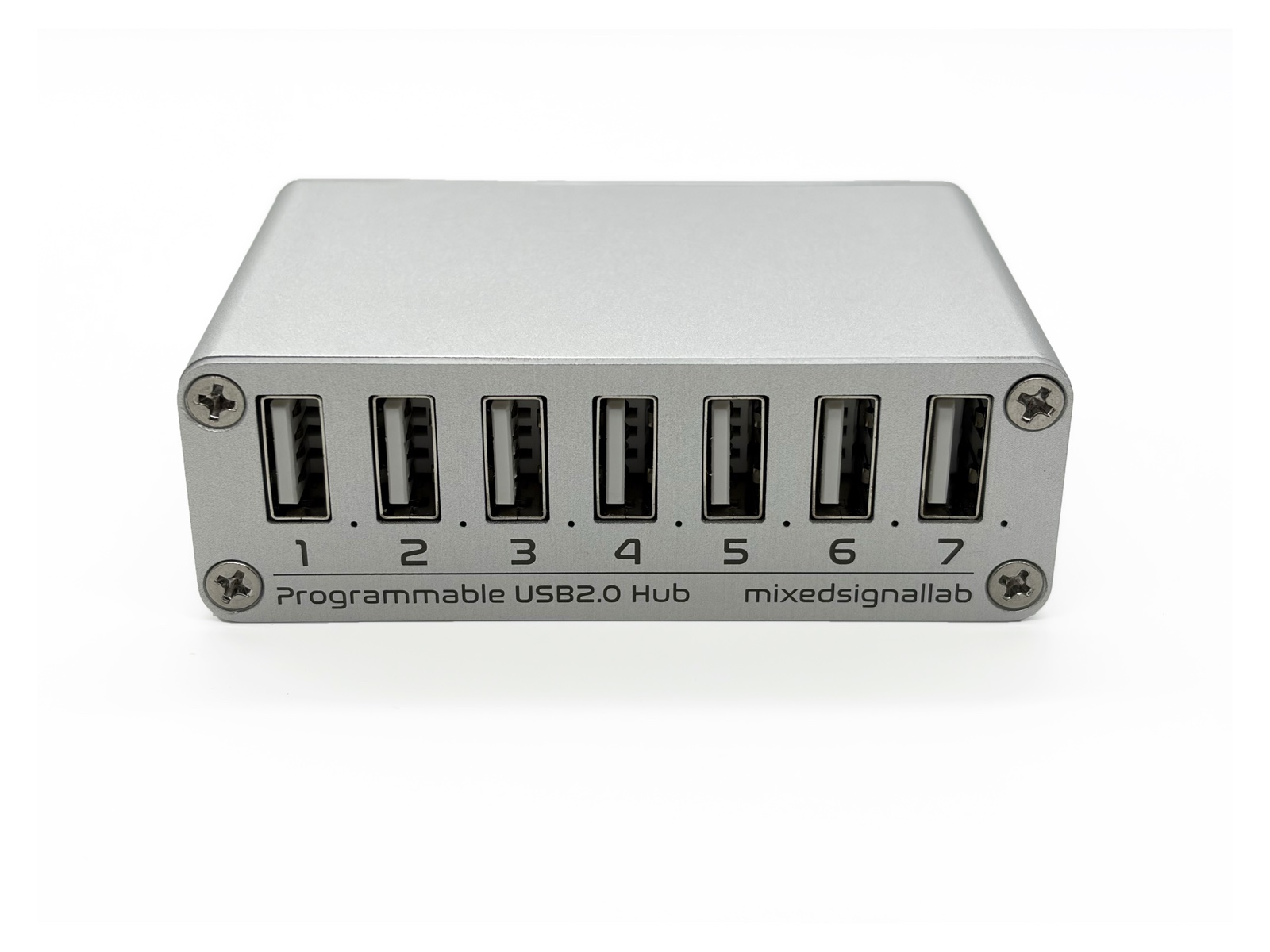

SmartUSBHub Pro 7CH USB2.0 ADVSmartUSBHub Pro 7CH USB2.0 ADV

专为测试自动化设计。7 路独立电源与数据线控制，10 A 总输出，支持 USB BC 1.2 CDP。标配逐路电压/电流测量与过流状态读取，可输出最高 100 Hz 的测量数据。Designed for test automation with seven independent power and data-line channels, up to 10 A total output and USB BC 1.2 CDP. It includes per-channel voltage/current measurement, readable overcurrent status and measurement streaming at up to 100 Hz.

USB 标准USB standard	USB 2.0 High-Speed (480 Mbps)，兼容 Full-Speed、Low-Speed 与 USB 1.1; compatible with Full-Speed, Low-Speed and USB 1.1
通道数Channels	7
单路保护阈值Per-port protection threshold	约 2.1 Aapproximately 2.1 A
5 V 总输出Total 5 V output	最高 10 A（所有端口共享）up to 10 A, shared across all ports
CDP 充电CDP charging	USB BC 1.2 CDP，单口最高 1.5 A；不支持 QC、USB PD 等快充协议USB BC 1.2 CDP, up to 1.5 A per port; QC, USB PD and other fast-charging protocols are not supported
电压/电流测量V/I measurement	标配逐路测量。电压：0–5.5 V，8 mV 分辨率，5 V、25 °C 时精度 ±32.5 mV；电流：0–2.7 A，1 mA 分辨率，25 °C 时精度 ±（读数的 1.25% + 2.5 mA）。数据流最高 100 Hz，取决于主机和软件配置Per-channel measurement is included. Voltage: 0–5.5 V, 8 mV resolution, ±32.5 mV at 5 V and 25 °C. Current: 0–2.7 A, 1 mA resolution, ±(1.25% of reading + 2.5 mA) at 25 °C. Streaming is up to 100 Hz, depending on host and software configuration
过流保护Overcurrent	约 2.1 A 逐路硬件保护；可读取每路过流状态approximately 2.1 A per-port hardware protection with readable per-channel status
数据线控制Data-line control	USB 2.0 D+ / D−，独立于电源USB 2.0 D+ / D−, independent of power
工作模式Operating modes	普通 / 互锁；上电默认状态、断电恢复、设备地址normal / interlock; power-on defaults, power-loss recovery, device address

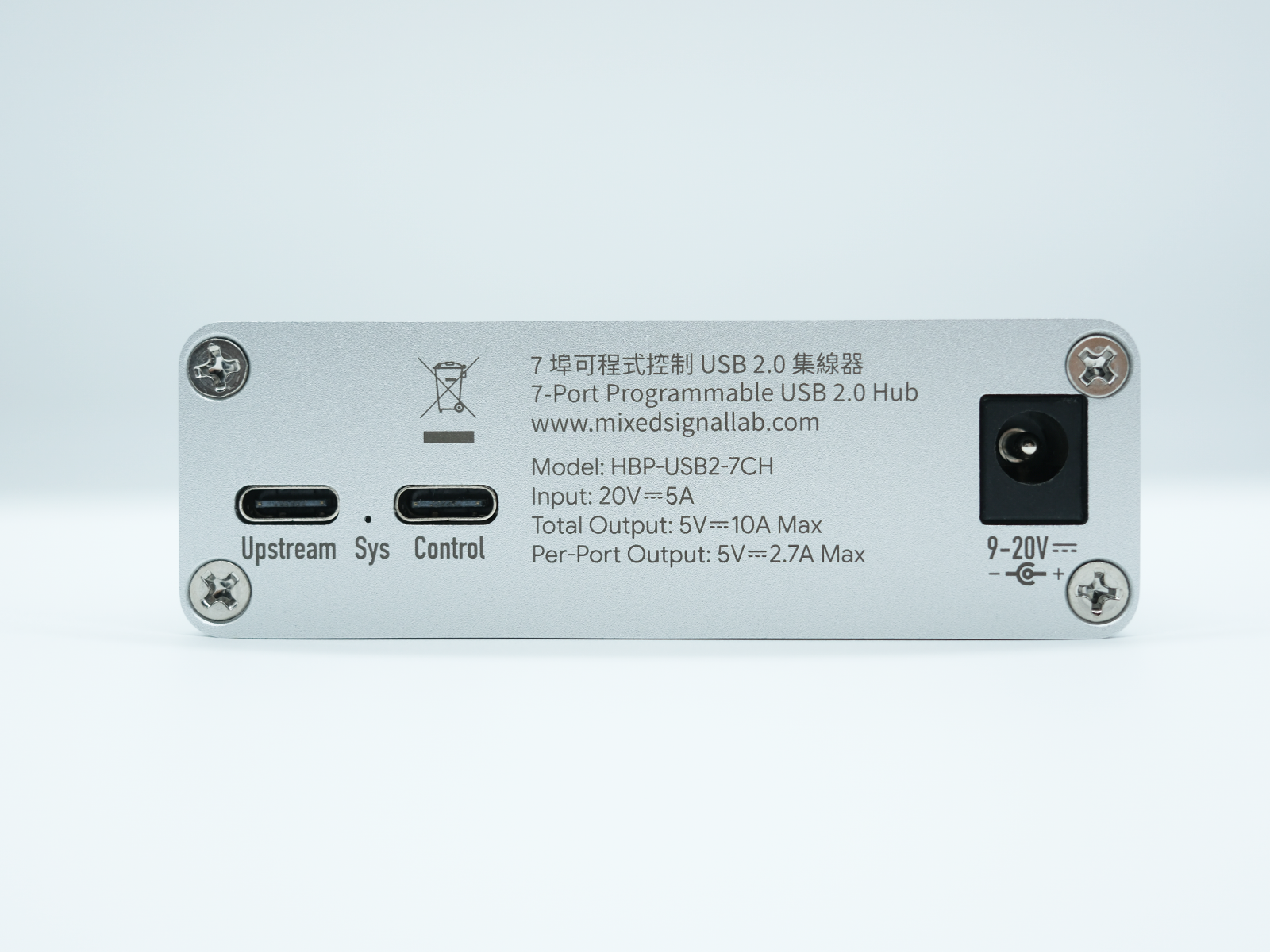

供电（DC5525）Power input	正常输入范围 9–20 V DC；应使用具有限流和短路保护的合格 19–20 V / 5 A 电源9–20 V DC operating range; use a qualified 19–20 V / 5 A supply with current limiting and short-circuit protection
主机接口（USB-C）Host interfaces	USB-C 上行数据口 + USB-C 指令口（USB CDC）USB-C upstream data + USB-C command port (USB CDC)
ESD	USB 信号具备板级 ESD 保护；认证等级以正式测试报告为准board-level ESD protection on USB signals; certification level is subject to a formal test report
固件升级Firmware update	支持有线升级Wired firmware update supported
USB CDC 主机支持USB CDC host support	当前 Windows、macOS、Linux 通常使用系统内置驱动；Windows 7 需使用随软件提供的驱动current Windows, macOS and Linux systems normally use built-in drivers; Windows 7 uses the bundled driver
